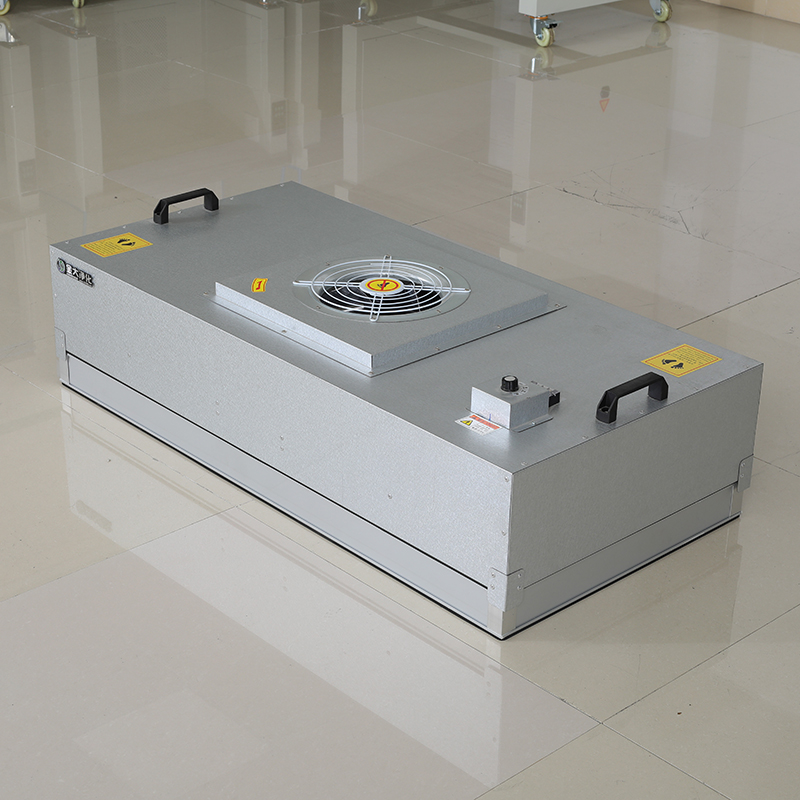

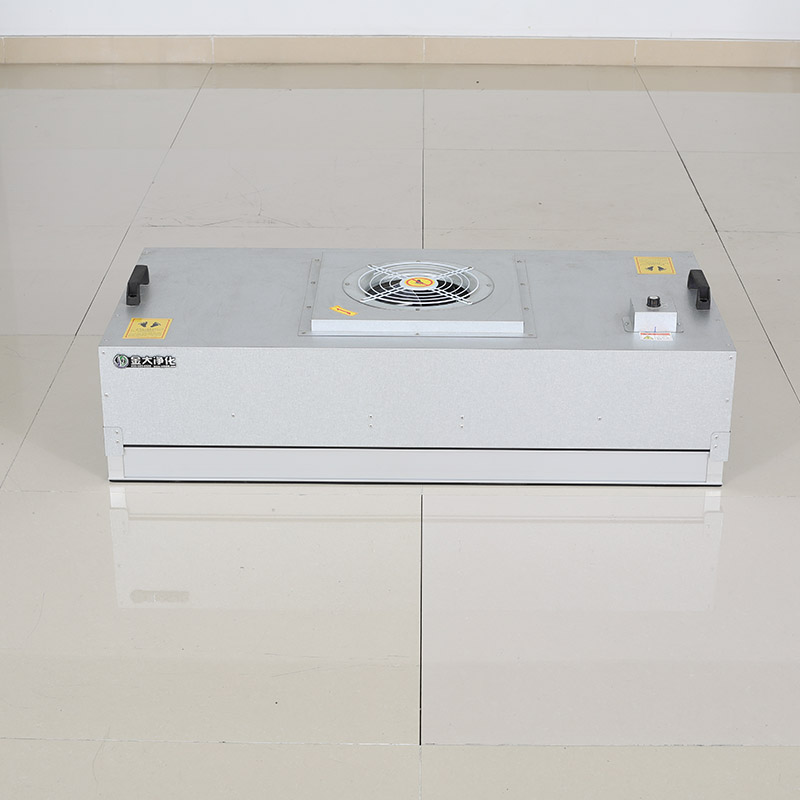

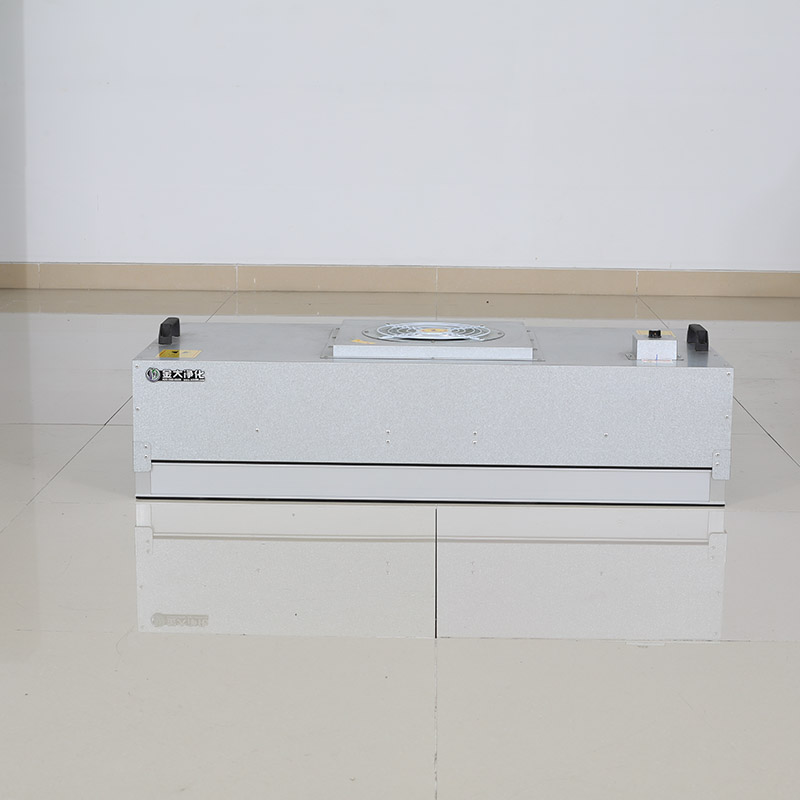

Galvalume Fan Filter Unit
  • Galvalume Fan Filter UnitGalvalume Fan Filter Unit
  • Galvalume Fan Filter UnitGalvalume Fan Filter Unit
  • Galvalume Fan Filter UnitGalvalume Fan Filter Unit

Galvalume Fan Filter Unit

The Jinda Galvalume Fan Filter Unit from China factory is a specialized ventilation and filtration system commonly used in various controlled environments such as cleanrooms, laboratories, and manufacturing facilities.The primary purpose of a Galvalume Fan Filter Unit is to provide controlled and clean air within a specific space. These units are essential in applications where maintaining a sterile or controlled environment is critical, such as in pharmaceutical manufacturing, semiconductor fabrication, cleanroom environments, or laboratories.

Send Inquiry

Product Description

The Jinda Galvalume Fan Filter Unit from China manufacturers and suppliers offers modular connectivity, making it a versatile choice for a wide range of applications, including clean rooms, clean workbenches, clean production lines, assembled clean rooms, and localized ISO Class 5 environments. This Cleanroom Fan Filter Unit is equipped with both primary and high-efficiency filters. The extension unit draws air from the FFU's upper section and directs it through a primary high-efficiency filter. Clean, filtered air is then uniformly released at an average velocity of 0.45 m/s ±20% across the entire outlet surface.

The fan functions by drawing in ambient air, while the filter's role is to eliminate contaminants, ensuring that the air circulated within controlled environments adheres to stringent cleanliness and quality standards. The unit's Galvalume construction guarantees its durability and resistance to corrosion, making it suitable for a variety of operating conditions.

The Galvalume Fan Filter Unit features a German EBM direct-drive, high-efficiency centrifugal fan known for its extended lifespan, low noise, maintenance-free operation, minimal vibration, and the ability for stepless speed adjustment. This fan is renowned for its reliability and can operate for more than 50,000 hours.

This FFU is particularly well-suited for use in assembled ultra-clean production lines. It can be configured as a single unit as per specific process requirements, or multiple units can be connected in series to create an ISO Class 5 assembly line.

The unit's shell structure is crafted from materials such as stainless steel, aluminum alloy, and cold-rolled steel plate. This not only makes it lightweight but also ensures resistance to corrosion and rust, enhancing its aesthetic appeal.

Before leaving the factory, each product undergoes meticulous scanning and inspection using a dust particle calculator, adhering to U.S. Federal Standard 209E, to guarantee top-notch quality.

Product parameters

Type FFU-575 FFU-1175 FFU-S1175
Dimensions 575*575 *280mm 1175*575*280mm 1175*1175*280mm
Air volume 600m³/h 1200m³/h 2000m³/h
cleanliness 100grade(US Federal Standard 209E)
High efficiency filter efficiency
99.999%@0.3μm
noise ≤52dBThe test point is 1m away from the direction, and the wind speed is 0.45m/s
Volume material galvanized sheet
power supply 220v 50Hz
power 110w 140w 250w
net weight 25kg 35kg 60kg

Galvalume Fan Filter UnitGalvalume Fan Filter Unit
