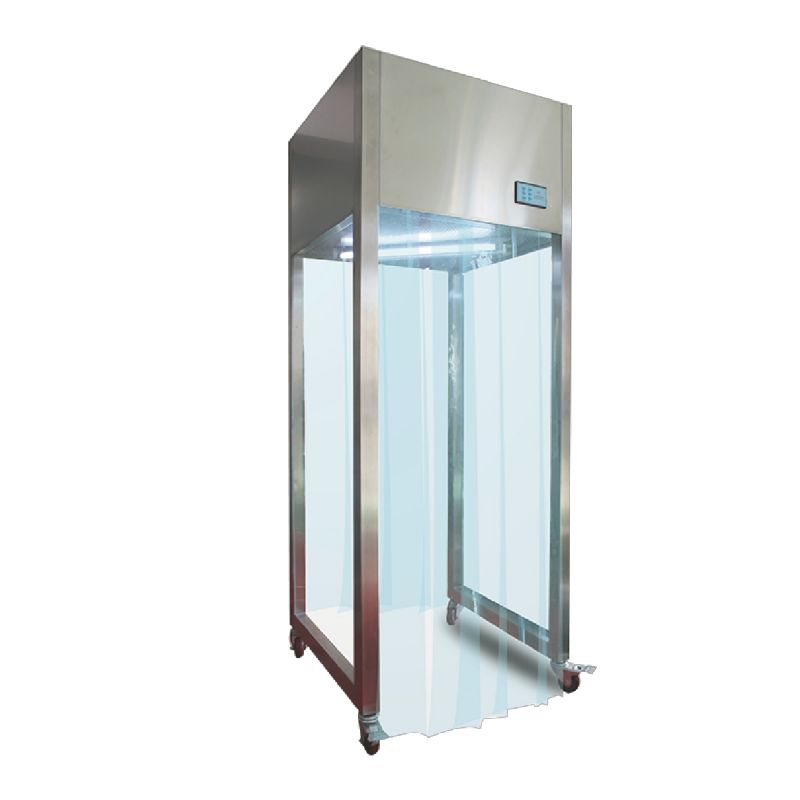

The Jinda clean sampling vehicle from China manufacturers is designed for the collection of raw and ancillary materials in pharmaceutical and sterile preparations. It finds extensive use in the sampling of primary materials for special applications. The Clean Sampling Vehicle of stainless steel layer with perforated plating guarantees long-lasting corrosion resistance, while the outer layer features a white, electrostatically sprayed surface treatment for a smooth, dust-free finish, ensuring both convenience and durability.
Type | PQ-715 | PQ-930 | PX-715 | PX-930 |
Overall dimensions (width*depth*height mm) | 715*715*1850 | 930*715*1850 | 985*715*1850 | 1200*715*1850 |
Purification area size (width * depth * height mm) | 615*700*1450 | 830*700*1450 | 615*700*1450 | 830*700*1450 |
Purification efficiency | One hundred thousand level | |||
noise | ≤65dB(A) | |||
Vibration | ≤3μm(X、Y、Z三个方向) | |||
lighting |
≥300Lx | |||
Maximum power | 400W | |||
Voltage | 220V50Hz | |||
High efficiency filter specifications and quantity | 600*600*120*① | 820*600*120*① | 600*600*120*① | 820*600*120*① |
Primary filter specifications and quantity 490*490*20*① 490*490*20*① 490*490*20*① 490*490*20*① | ||||
Lighting/UV lamp specifications and quantity | 9W*①/14W*① | 9W*①/14W*① | 9W*①/14W*① | 9W*①/14W*① |
Charging and battery life | _ | _ | Charging voltage 220V 50Hz, full charging time 5H, battery life 3H, battery capacity 120AH | |
fan | High, middle and low taps, independent winding | |||
Universal wheel | White nylon wheels, two with brakes on the front | |||
controller | High, medium and low speed adjustment | |||
The main material | The steel plate is electrostatically sprayed/201 stainless steel/304 stainless steel, with transparent soft curtains at the entrance and exit. |
